Electrophoresis power supply high current and voltage
Electrophoresis use power supply of high specification.
Successor of AE-8450 and 8750

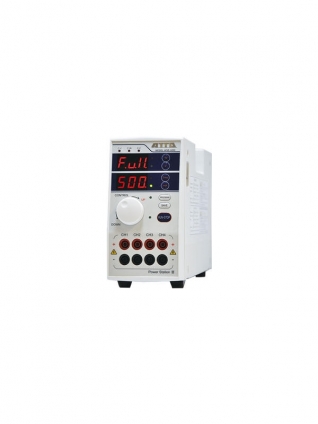

WSE-3200 powerStation III

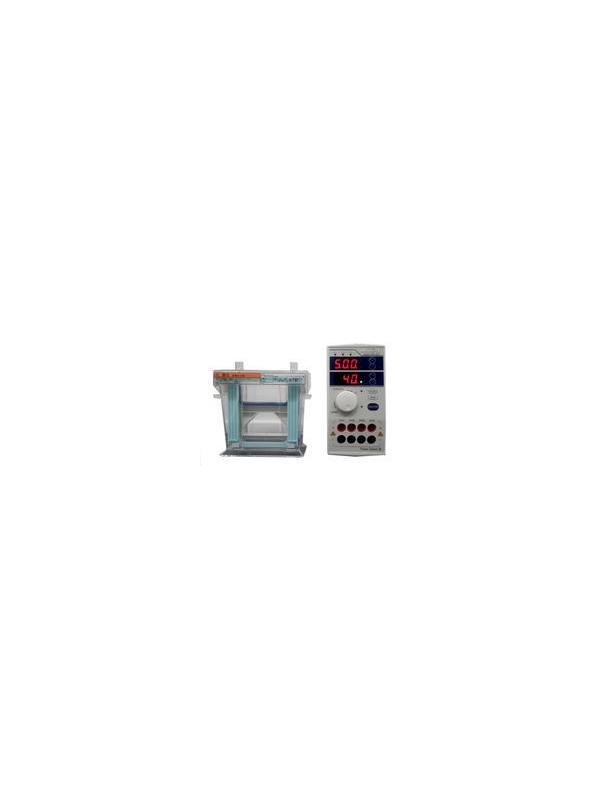

WSE-3200 with AE-6530
Features
- Fully programmable setting module: 21 files of free mode, 10 files of chain mode
- Pre-settings for output condition of general use (electrophoresis)
- Setting and storage of original output condition in memory
- Big sized dial-knob
- Safety function and highly reliable accuracy
- Affordable price
- Clear display and LED x 2
Specifications
| Product Number | WSE-3200 | |||
|---|---|---|---|---|
| Product Name | PowerStation III | |||
| Output range | 10 - 1000V (display 1000=Full) (Maximum 200W) | |||
| 0 - 500mA (display 0 - ) (Maximum 200W) | ||||
| 0 - 200W (display 0 - ) | ||||
| Setting steps | 10 - 1000V 1V Steps | |||
| 1 - 500mA 1mA Steps | ||||
| 1 - 200W 1W Steps | ||||
| Output terminal | 4 groups parallel output | |||
| Timer | 1 - 999min、continuous, 1min with timer | |||
| Control Function | Constant voltage or current with automatic crossover | |||
| Control Panel | Display | 7seg LED3 x 2 | ||
| Setting | Turning dial | |||
| External Control | None | |||
| Alarm | Press keys, Errors, End of loading | |||
| Output accuracy |
Power | Below 10 - 50V, ±1.5V against Setting value | ||
| Current | 51V - 150V ±3%+5digits against Setting value | |||
| Voltage | 151V - 1000V ±2%+5digits against Setting value | |||
| Display accuracy |
Voltage | within the range of ±(0.2% of rdg+5digits) | ||
| Current | within the range of ±(0.5% of rdg+5digits) | |||
| Power | within the range of ±(0.5% of rdg+5digits) | |||
| Condition storage |
Preset |
