Slab size gel caster
Easy hand gels casting kit for the polyacrylamide gel plate
Hand gel casting kit for polyacrylamide vertical slab gel plate of 138(W)x130(H)x1(D)mm size.

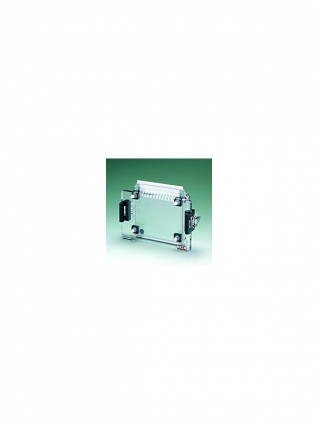

AE-6210 Slab Gel Cast
Purpose and Application
- Casting gel for AE-6200 Slab EP Chamber
- Casting gel for AE-6220 Dual Slab Chamber
Features
- Easy setting with specially designed parts and seal gasket
- Easy assembly by putting a pair of glass plates and a seal gasket together in the set position
- Even a beginner can hand cast a gel without leak or drain
- Ready to cast a gel of 1 to 2.0 mm thickness
Specifications
| Product Number | AE-6210 |
|---|---|
| Product Name | Slab Gel Cast |
| Plate size | 160mm(W)x160mm(L) RAB-01/RB-00 Total 11mm thickness |
| Gel size | 138mm(W)x130mm(H)x１mm(D) |
| Number of gel plate | 1 plate |
| Casting | Pressing plates and seal gasket with spring |
| Materials | Acrylic plate, stainless steel clip, glass plate, silicon gasket |
| Dimensions | 250mm(W)x150mm(D)x80mm(H) |
| Weight | 1kg (Main parts only, without glass plates) |
| Components | Main parts: Glass plates RAB-10（160x160mm, with 1mm spacer) Glass plate RB-00（160x160mm), Seal gasket RS-01 (1mm), Smilingless Comb (1mm thick, 12 wells) 1pc, A manual |
