Gel casting kit for ATTO Compact Gel
Easy setting & making max 4 Compact gels (Width 60 x Height 60 mm)!

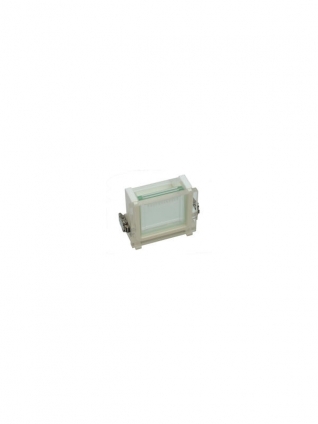

WSE-1090 Multi Compact Gel Cast
Purpose and Application
Gel casting kit for compact size (60 x 60 mm, thickness 0.75 mm) gel
Compatible electrophoresis apparatus:
Features
Specifications
| Product number | WE-1090 |
|---|---|
| Product name | Multi Compact Gel Cast |
| Gel size | 60 mm(W) x 60 mm(H) x 0.75 mm(T) (Compact slab size) |
| Number of gel | Max. 4 pieces (Standard:2 pieces) |
| Plate | CAB-075 Notched plate/CB-00 Plain plate |
| Sample comb | CP075-12 Smiling-less compact comb 12-well (Well 2.9 mm width, 8μL/well) 0.75 mm thickness, PP mold |
| Material | Gel caster(Acrylic, Silicon, Stainless steel, Aluminum), Plate(Glass) |
| Dimension/Weight | 76 mm(W) × 48 mm(D) × 130 mm(H), 0.45 kg (Main unit only) |
| Component |
Main unit :1 Plate set (CAB-075 Notched plate & CB-00 Plain plate) :2 CP075-12 Smiling-less compact comb :2 Dummy plate :1 Divider plate :6 |
Download
You can download various documents (PDF)
