LuminiGraph II is Chemiluminescent Imaging System having the World's first "F0.8" lens and low noise "-40 degree" cooled CCD camera.

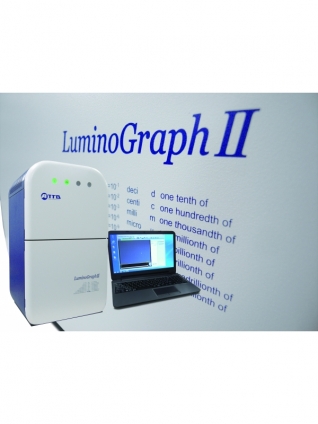

WSE-6200H LuminoGraph II
Basical Composition
- LuminoGraphⅡ Main body
- F0.8 / High sensitive lens
- -40℃ cooled CCD camera
- ImagSaver6 / Control Software
Option
- Analysis software
- Fluorescent excitation light source LED
- White penetration light source
- PC system
- UV transparency acrylic tray
Purpose and Application
Chemiluminescence imaging of Western blotting, Southern blotting and Northern blotting
- Fluorescent imaging of fluorescent staining gels and fluorescent proteins (optional)
- Bright field imaging of CBB staining gels (optional)
- Quantitative analysis of samples from the image (Concentration and Molecular weight)
- Merge image of chemiluminescent image and prestained marker of membrane image
Product Summary
WSE-6200H LuminoGraph II is chemiluminecent imaging system having sensitive lens "F0.8" and cooling CCD function for actualization low noise.
Options
- For fluorescnece LED light
・Blue or Green LED light source・・・AE-6935 VISIRAYS
・RGB（Blue/Green/Red）LED light source・・・WSE-5500 VariRays
・Cyan LED light source(Transmission type Cyan LED light)・・・WSE-5600 CyanoView - White color LED light source
・FlatViewer - UV light box
・Fluorescence Kit・・・WUV-M20, including filter - Analysis software
・CS Analyzer 4 Windows ver. - Controlling PC system
Features
The world's first "F0.8" lens
It is 10% ~ 300% brighter than other manufacturer in market and it can detect feeble light.
ATTO do not rely on digital processing and ATTO actualized wide dynamic range with low distortion performance to make high quality image.
- -40 degree cooling CCD camera・・・Low noise imaging
- Merge image of luminescent image and membrane membrane image
- AutoExposure function
→with dynamic range that noise reduction processing (dark arithmetic, noise reduction processing), flat field correction etc. in automatic - 16bit TIFF format
→General imaging file format
→Convertible to JPEG and 8bit TIFF - Autocontrast Inverse image
→Control software and image analysis software is available for autocontrast and inverse image function
Specifications
| Product Name | WSE-6200H LuminoGraph II |
|---|---|
| Camera | Cooling CCD camera Quenching temperature -40℃ （Environmental temperature 20～30℃）, 1740×1300 pixels |
| Lens | F0.8 high sensitive lens |
| Image size (Resolution) | Capture position:5 position, Max：260×200mm Min：90×70mm |
| Cabinet lamp | LED White lamp (Working together with cabinet door) |
| Image data | 1740×1300 16bit（65536 scale） |
| Unit size | 365mm(W)×288mm(D)×608m(H) Weight 20.2kg |
| Power Supply | AC100V～AC240V（±10%） 50/60Hz |
| Control | Windows PC （Cooling system is started with main unit ON） USB connection, Controlling software / ImageSaver6（Basic Attachment）, OS Windows8.1/8/7/Vista available for each 32bit/64bit system |
| Attachment | WSE-6200H Main Unit, Filter holder, Tray, USB memory(ImageSaver6 instraller), Instruction Manual etc. |
Option
- Fluorescence Kit （UV light box WUV-M20+Filter SWP/YA-3/OY）
- Cyan fluorescence Kit （CyanoView+YA-3 filter+Orange shield cover for cutting gel）
- WSE-5600 CyanoView（ Transmission type Cyan LED light）
- WSE-5500 VariRays（Epi RGB）
