The World's first Touch panel control Power supply! Big color screen is adopted for showing simple control function.
High performance for electrophoresis and western blotting.
PowerStation Ghibli I
Purpose and Application
・Electrophoresis
For high speed mode electrophoresis SDS-PAGE, Native-PAGE etc.
Polyacrylamide gel/Agarose gel DNA electrophoresis
isoelectric focusing electrophoresis (IEF) of protein etc.
・Blotting
High speed mode blotting
Semi-Dry blotting
Wet blotting etc.
Product Summary
The World's first Touch panel control Power supply!
Big color screen for simple control function.
High performance for electrophoresis and blotting.
Features

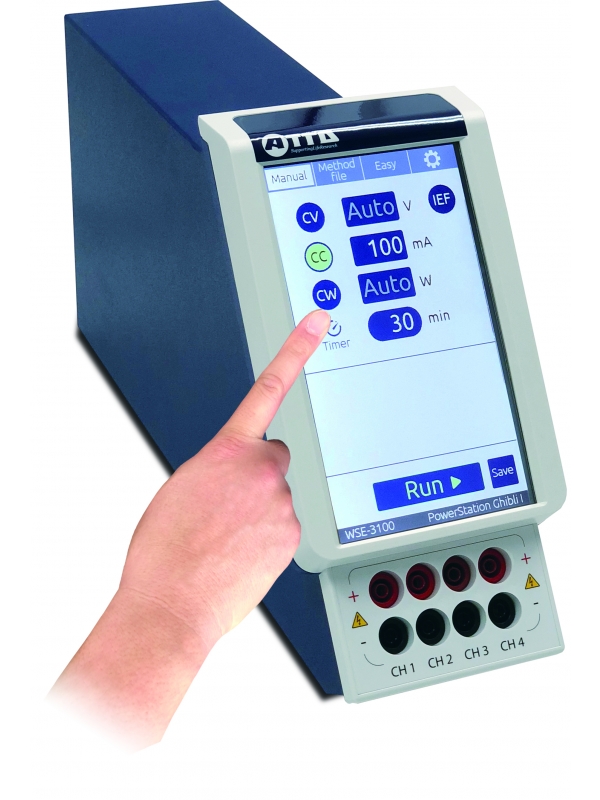

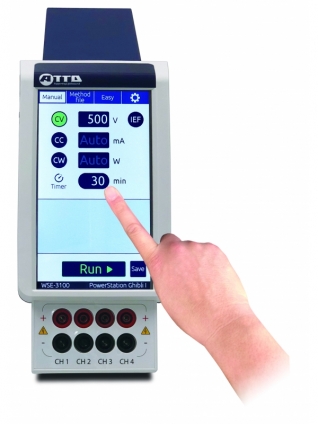

●The World's first Touch panel control!
Simple operation with big touch color screen
Operation system with latex glove
●Big screen color display
Set value・Output value・Timer・Error・Graph display etc.
Easy to control with simple menu screen
●Broad output range
Voltage 0~500V , Current 0~3000mA
Available with High speed mode electrophoresis and High speed mode blotting
isoelectric focusing electrophoresis (IEF) of protein
●Simple operation
Manual mode:only to input current (or voltage) under constant current (or voltage) setting
Method file mode:Select condition from saved file list
Able to save 20 files: 1 file for 9 steps (Auto switching step)
Easy mode：Self Select SDS-PAGE, Blotting etc.
●Other functions
Detect an error with display on screen・Alarm notice
Output pause: it is able to change set value during output operation
Output graph: Able to check a Graph display of actual output values
Power fail recovery
Display an animal on screen during output operation
Specifications
| Model name | WSE-3100 PowerStation Ghibli I |
|---|---|
| Setting | Voltage 3~500V Current 10~3000mA Power 1~200W |
| Output range | Voltage 0~500V Current 0~3000mA Power 0~200W |
| Timer | 1~999min, Count down, Timer ON/OFF |
| Display operation | 7 inch color screen touch panel |
| Operation | Constant current・current・Power /Cross Over Manual mode, Easy mode, Method file mode：20 files available, 1 file for 9 steps（Auto switching step） |
| Safety | Error detection showing such open, short etc.・Alrarm |
| Other functions | Pause, Graph display of actual output values, Power fail recovery ON/OFF |
| Safety Condition | 0-40℃, 20-90%RH (Not acceptable condensation) |
| Power | AC100-240V 50/60Hz |
| Output terminal | 4 groups parallel output |
| Dimension | 119(W)x417(D)x224(H)mm |
| Weight | 6kg |
ー Display ー
